گریس SKF LAGD 125 WA2 یا گریس اس کا اف جزو گریس های تایمری شرکت SKF می باشد.این محصول تایمری شرکت اس کا اف قابلیت روانکاری از ۱ ماه تا ۱۲ ماه را دارا می باشد.

از گریس تایمری LAGD 125 WA2 برای روانکاری کانوایر،بلبرینگ ،بالابرهای صنعتی،جرثقیل های صنعتی،پمپ و الکترو موتورها استفاده می شود.

گریس اس کا اف تحمل حرارتی منفی ۲۰ تا ۶۰ درجه سانتیگراد را دارا می باشد.

گریس اس کا اف ماده روانکاری است که در ساختار آن از پرکننده Iهایی استفاده شده است تا بتواند به قطعات متحرک صنعتی چسبیده و تحت نیروی جاذبه زمین یا فشار بالا از قطعات جدا نشود.

از گریس صنعتی برای روانکاری نقاطی استفاده می‌شود که امکان روان کاری مکرر توسط روانسازهای دیگر وجود نداشته باشد.

بازرگانی تامین صنعت آپادانا آمادگی خود را جهت ارسال محصولات اصلی شرکت SKF به سراسر کشور اعلام می دارد.

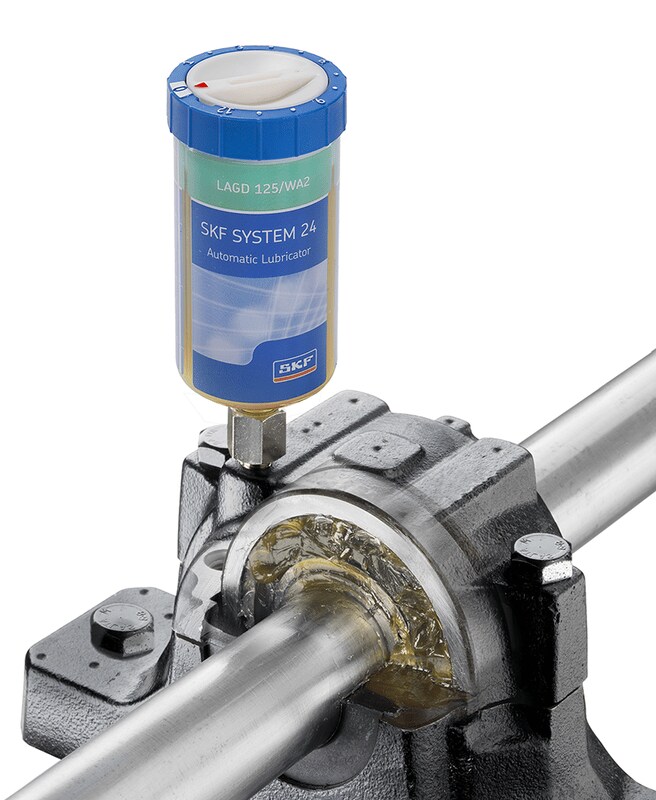

Gas driven single point automatic lubricators

SKF SYSTEM 24

SKF LAGD 125 WA2

The units are supplied ready-to-use straight from the box and filled with a wide range of high performance SKF lubricants. Tool-free activation and time-setting allow easy and accurate adjustment of lubrication flow.

• Flexible dispense rate from 1 to 12 months
• Stoppable or adjustable if required
• Intrinsic safety rating: ATEX approved for zone 0
• Transparent lubricant container allows visual inspection of dispense rate
• Compact size, permits installation in restrictive areas
• Greases and chain oils available
• SKF DialSet software helps to calculate the correct dispense rate
• Extensive range of accessories.

Typical applications

SKF LAGD 125 WA2

• Applications in restrictive and hazardous locations
• Bearing housing lubrication
• Electric motors
• Fans and pumps
• Conveyors
• Cranes
• Chains (oil)
• Elevators and escalators (oil)

Product Details

Auto Lubrication LAGD 60 and 125

The SKF SYSTEM 24 is a single-point automatic lubricator, which can be used to supply grease to a single lubrication point. Automatic lubricators can be set to ensure that the correct quantity of lubricant is delivered over a set time period using an inert gas cell. This lubrication procedure allows more accurate control of the amount of lubricant supplied, compared to traditional manual relubrication techniques. The units (dependent on type) contain ۶۰ ml or 125 ml of grease or oil and they are suitable for many lubrication applications. The nominal dispensing period can be set between 1 and 12 months and can also be temporarily deactivated if necessary.

Features and Benefits

• Transparent lubricant container reduces gas diffusion
• Approved for use in areas with an explosive atmosphere, also, mines and underground areas
• Easy to remove end cap
• No tools required for installation
• Time setting slot allows easy and accurate adjustment of the lubrication flow

Product Application Information

LAGD is a gas driven single point lubricator. It is suitable for direct mounting in dangerous environments with limited available space. Most suitable for points involving frequent lubrication, machine shutdown and safety implications.
Typical applications include electric motors, fans pumps, joints, chains, guides, elevators, conveyors, cranes and bearing housings.

Approvals

II 1 GD EEx ia II C T6 T85°C, I M 1 EEx ia 1

SKF Automatic Lubricator

The SKF 125ml single-point automatic lubricator can be used to supply grease to a single lubrication point. The automatic lubricators can be set to ensure that the correct quantity of lubricant is delivered over a set time period using an inert gas cell. This lubrication procedure allows more accurate control of the amount of lubricant supplied, compared to the traditional manual relubrication techniques. These units are suitable for many lubrication applications. It has a nominal dispensing period that can range between 1 month and 12 months and can also be temporarily deactivated, if necessary. It also is a gas-driven single-point lubricator. It is suitable for direct mounting in dangerous environments in limited space available and is most suitable for points involving frequent lubrication, machine shutdown and safety implications.

Features and Benefits

•
Transparent lubricant container reduces gas diffusion and allows visual inspection of dispense rate
• Approved for use in areas with an explosive atmosphere and also in mines and underground areas
• Easy to remove end cap
• No tools are required for installation
• Time setting slot allows easy and accurate adjustment of the lubrication flow
• High reliability and dispense rate accuracy allow fit and forget procedure until the predetermined replacement date
• High capacity, compact size permits installation in restricted areas
• Minimises the risk of leakage
due to SYSTEM 24 that is less sensitive to vibration
• Filled with various high-quality SKF greases and oils
• Dispense rate setting is a simple part of the installation process
• Hermetic sealing prevents ingress of dirt or foreign matter
• Allows low grease dispense rate

Applications

•
Electric motors
• Pumps
• Joints
• Guides
• Elevators
• Bearing and conveyors
• Automotive manufacturing
• Pulp and paper
• Petrochemical, nuclear power plants and pharmaceutical
• Marine equipments

Certifications

•
ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
